AD-300

Overview

The AD-300 is used to connect the Mercury hardware to one or more Schlage locks via a RS485 connection.

Click to view: AD-300_Data_Sheet.pdf

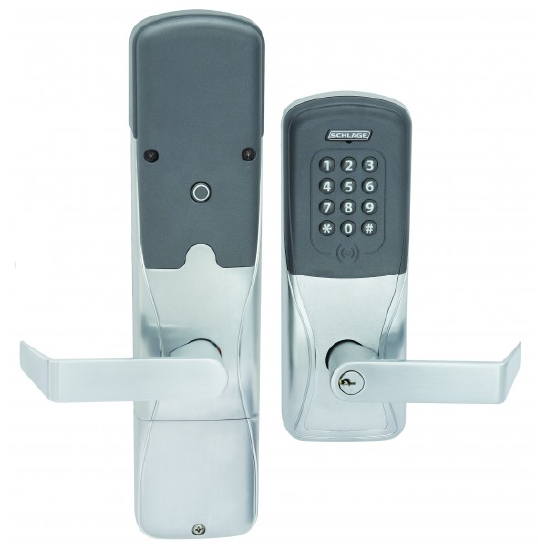

AD-300 picture.png

Connecting the AD-300 to the Controller

  1. Connect the RS485 from the AD-300 TDA- to the TR+ (Clk) of the Mercury controller and the TDB+ to the TR- (Data) of the Mercury controller.
  2. Connect the AS-300 power pair to a 12V 250mA power source or install batteries



Configuring AD-300

  1. Use the Schlage SUS door configuration utility to set the RS485 comm address and other variables, like card technology etc.
    • Link to how to use Schlage SUS document (SUS User Guide 6.3.3.pdf) - Shaun to take care of.  Download AD-300 User Guide
  2. Set "Direct Communication to the host" on the AD-300
  3. Set comm address to match address defined in BluSKY.
    1. The first AD-300 should be set to Comm address 01.

Configure the AD-300 in BluSKY

  1. Define a controller (Point to controller BluINFO article)
    1. Change default RS485 baud rate to 9600
    2. Save
  2. Creating SIO board
    1. Board Type: AD300Lock
    2. Set Comm Address to the setting created in "Configuring AD-300" section above.
    3. Save
  3. Create 1 Output
  4. Create 1 Reader
  5. Create 2 inputs (DPS and REX)
    1. DPS normally closed
    2. REX normally open
  6. Create Portal
  7. Sync controller

Note: You can mix AD-300 and PIM400 on the same RS-485 chain provided that they have different comm addresses.  Do not connect any other board types to this RS-485 chain.

Note: Shaun add AD-300 document to this document and in Dropbox.  Add Design Note to this document.
