Person Reader Mounting Guidelines

• Properly mounted readers should not alter the behavior of users approaching an unlocked door

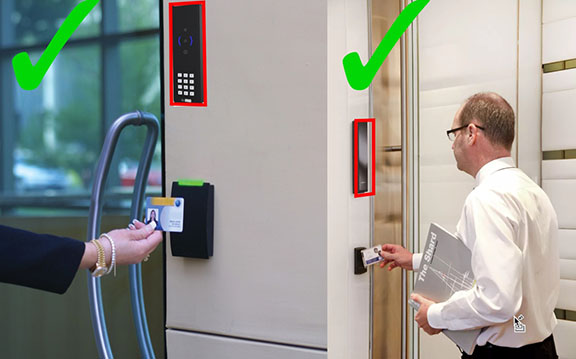

• Mount reader
  • Such that middle camera is 52” – 60” (center camera AFF)
    • ADA Compliance the PR can be mounted at 50" (center camera AFF)
  • Next to handle-side of the door
  • In the same plane as the door
  • Such that it is facing approaching users at an arm’s length
  • Away from spotlights

• Good placement
• Good lighting
• The reader recognizes you as you approach the door

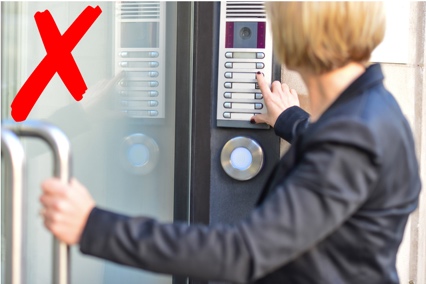

To frontally face this device users would have to:

• Block the door they are trying to open
• Face away from where they want to go
